Sealey Folding Engine Crane 2 Tonne
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Model No. PH20

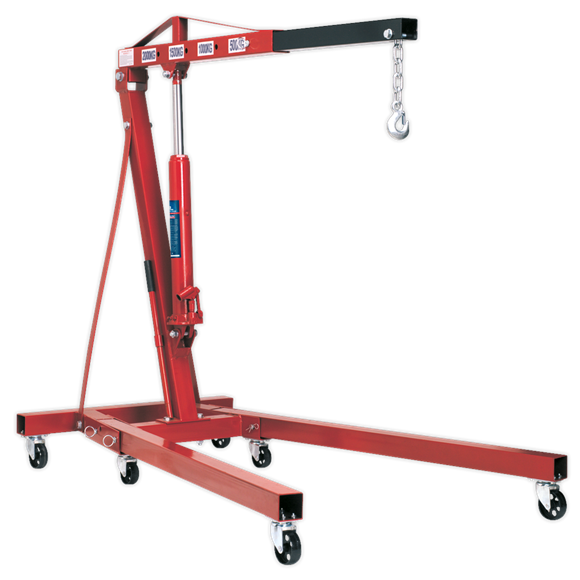

- Lifts 2000kg at 930mm jib extension.

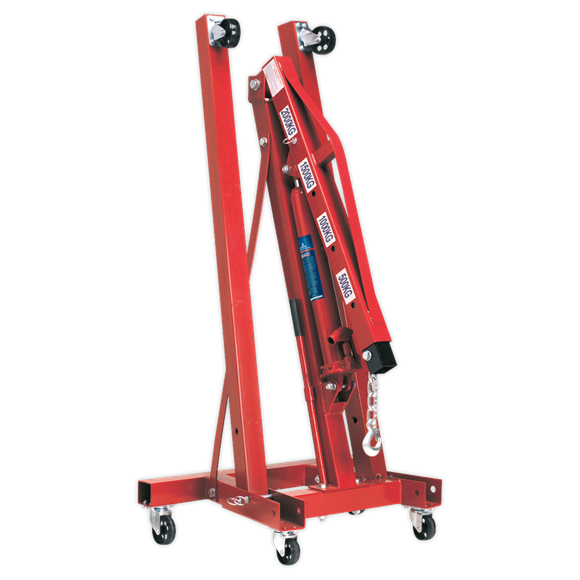

- Folds for easy storage, freeing valuable workshop space when not in use.
- Bottle jack type hydraulic unit for economy.
- Some self-assembly required.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Height Jib Down: 1440mm
Height Legs Folded: 1540mm
Height of Frame: 195mm
Length Legs Extended: n/a
Length of Jib Position 1: 930mm
Length of Jib Position 2: 1110mm
Length of Jib Position 3: 1200mm
Length of Jib Position 4: 1460mm
Length of Jib Position 5: n/a
Length: 1750mm
Lifting Capacity in Position 1: 2000kg
Lifting Capacity in Position 2: 1500kg
Lifting Capacity in Position 3: 1000kg
Lifting Capacity in Position 4: 500kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 2060mm
Max. Lift Ht at Jib Position 2: 2190mm
Max. Lift Ht at Jib Position 3: 2330mm
Max. Lift Ht at Jib Position 4: 2490mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 77kg
Rear Width: 850mm
Width Front Frame: 1055mm
Width Inside Front Frame: 915mm
