Sealey Folding Engine Crane 1 Tonne
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Model No. SC10
- Super economy model delivered in knock-down form, some self-assembly required.

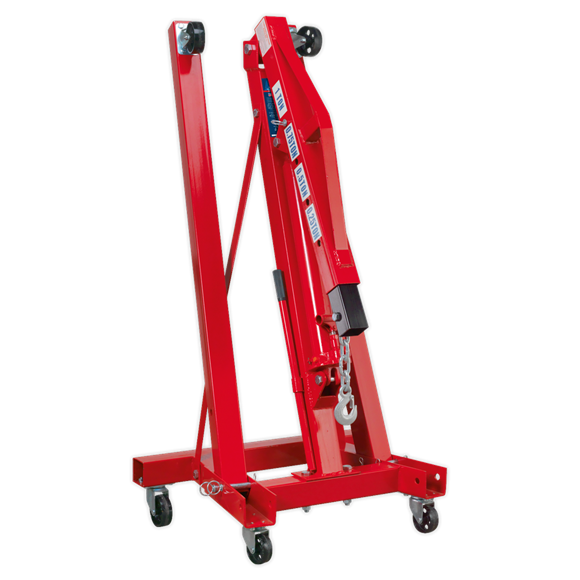

- Fast folding model provides easy storage and transportation.
- Heavy-duty castors.
- Weighs only 67kg and is perfect for mobile or workshop use.

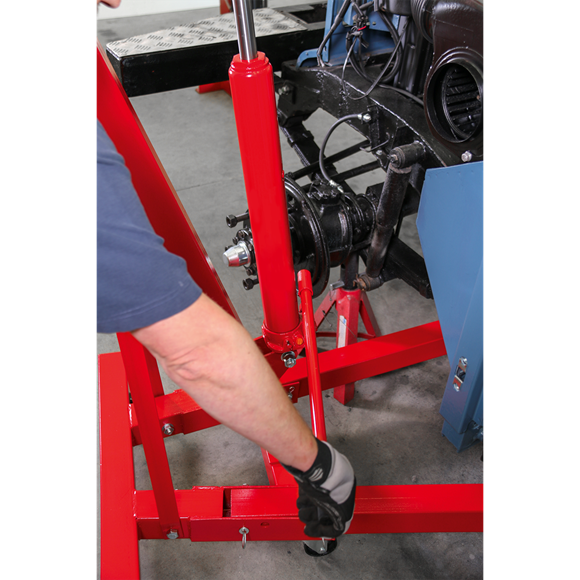

- Side pump access with removable handle.
Height Jib Down: 1390mm
Height Legs Folded: 1440mm
Height of Frame: 185mm
Length Legs Extended: 1620mm
Length of Jib Position 1: 830mm
Length of Jib Position 2: 950mm
Length of Jib Position 3: 1070mm
Length of Jib Position 4: 1190mm
Length of Jib Position 5: n/a
Length: 1620mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 750kg
Lifting Capacity in Position 3: 500kg
Lifting Capacity in Position 4: 250kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1820mm
Max. Lift Ht at Jib Position 2: 1935mm
Max. Lift Ht at Jib Position 3: 2030mm
Max. Lift Ht at Jib Position 4: 2150mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 67kg
Rear Width: 700mm
Width Front Frame: 920mm
Width Inside Front Frame: 780mm
