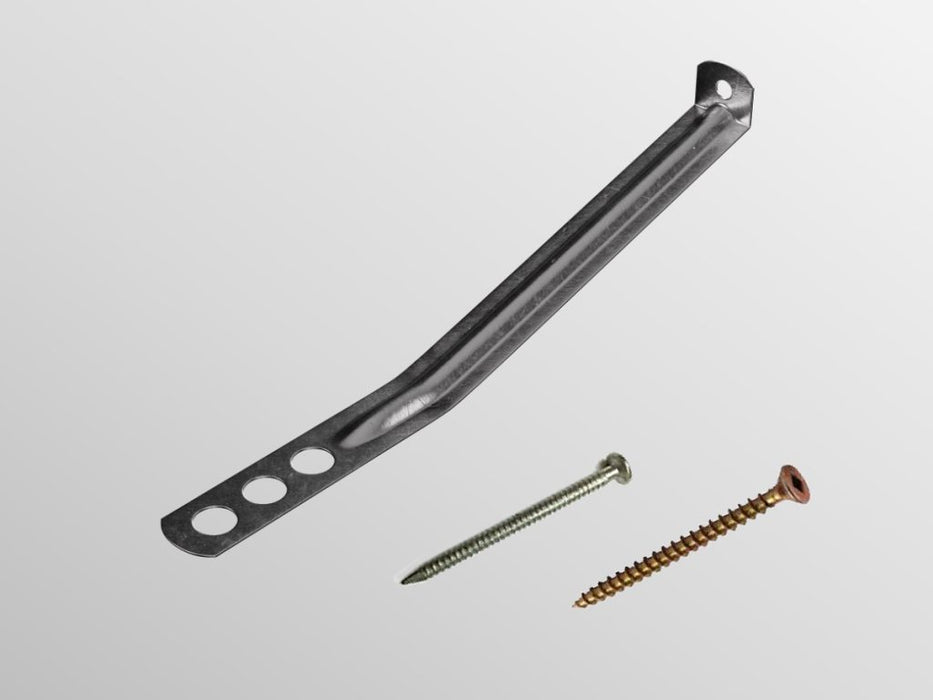

V61 Timber Frame Ties

V61-125-STST (250 Per Box)

Supplied complete with 50mm x 3.35mm Stainless Steel Annular Ring Nails. Also available with 50mm x 4.0mm Stainless Steel Screws for SIPS panels.

• Application – This type of timber frame wall tie is right for domestic and small commercial builds up to four storeys high. They are suitable for buildings with a maximum height if 15m and for flat sites where the basic wind speed is up to 25m/s and altitude is not greater than 150m above sea level.
• Design – Masonry-timber tie for timber frame buildings that accommodates vertical movement.
• Material – Manufactured from grade 304 stainless steel
• Behaviour in relation to fire – non combustible (as defined in the national Building Regulations)
• Durability – excellent corrosion resistance and a service life of not less than 60 years
• Thermal performance – In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
• Compliance – Tested as Type B (sound) and as Type 6 (strength) to BS EN 845-1
