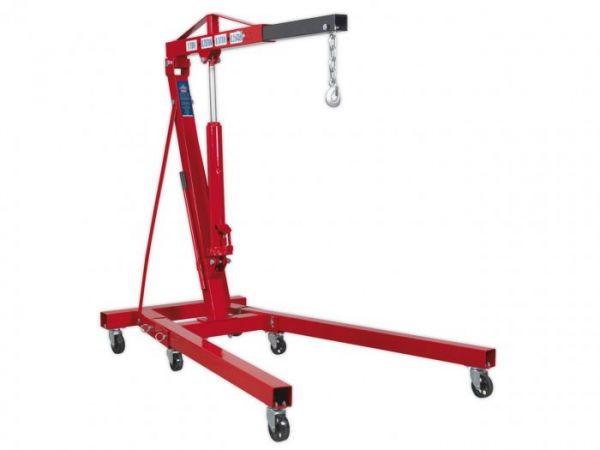

Engine Crane 1tonne KD Sealey
SKU
SC10
• Super economy model delivered in knock-down form for reduced freight cost. • Fast folding model provides easy storage and transportation. • Heavy-duty castors. • Weighs only 75kg and is perfect for mobile or workshop use. • Side pump access with removable handle.
| Height Jib Down: | 1390mm |
| Height Legs Folded: | 1440mm |
| Height of Frame: | 185mm |
| Length Legs Extended: | 1620mm |
| Length of Jib Position 1: | 830mm |
| Length of Jib Position 2: | 950mm |
| Length of Jib Position 3: | 1070mm |
| Length of Jib Position 4: | 1190mm |
| Length of Jib Position 5: | n/a |
| Length: | 1620mm |
| Lifting Capacity in Position 1: | 1000kg |
| Lifting Capacity in Position 2: | 750kg |
| Lifting Capacity in Position 3: | 500kg |
| Lifting Capacity in Position 4: | 250kg |
| Lifting Capacity in Position 5: | n/a |
| Max. Lift Ht at Jib Position 1: | 1820mm |
| Max. Lift Ht at Jib Position 2: | 1935mm |
| Max. Lift Ht at Jib Position 3: | 2030mm |
| Max. Lift Ht at Jib Position 4: | 2150mm |
| Max. Lift Ht at Jib Position 5: | n/a |
| Nett Weight: | 75kg |
| Rear Width: | 700mm |
| Width Front Frame: | 920mm |
| Width Inside Front Frame: | 780mm |
| Manufacturer | SEALEY |
|---|
