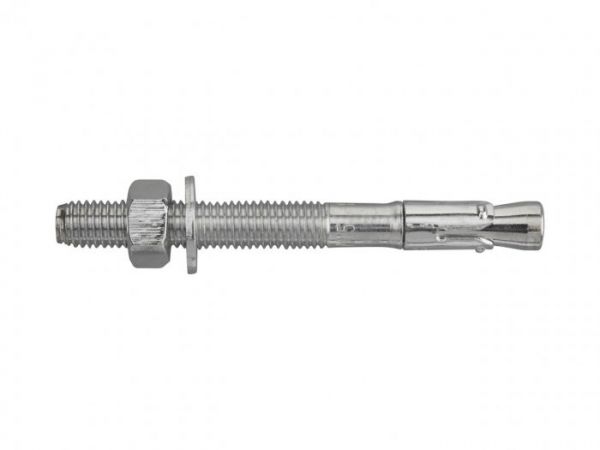

DEWALT Throughbolt PTB-PRO BZP M12 x 220mm (Box 10)

Dewalt PTB-PRO M12x220 Std Anchr-Znc Pltd DFM1110720

The Dewalt DFM1110720 Through bolts zinc plated.Cracked concrete throughbolt. The PTB-PRO is fully threaded, torque controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete. The wide range of available PTB-PRO anchor sizes also cover all common capacity demands with a superior load displacement response that qualifies the PTB-PRO for both standard and adverse loading conditions

Features and Benefits:

• Cracked concrete throughbolt
• The PTB-PRO is fully threaded, torque controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete
• The wide range of available PTB-PRO anchor sizes also cover all common capacity demands with a superior load displacement response that qualifies the PTB-PRO for both standard and adverse loading conditions.
• ETA option 1 approval for cracked and uncracked concrete
• Approved for seismic load applications (M8-M16)
• Two approved embedment depths (M12 & M16)
• Long thread for flexibility in fixture thicknesses
• Special cone angle for quick installation
• F12 fire resistance

Technical Specification:

ETA - y
thread size x length (mm) - M12 x 220
head size (mm) - 19
T-fix (mm) - 135

Supplied With:

10 x PTB-PRO M12x220 Std Anchr-Znc Pltd
